How might we create a more flavorful and convenient infusion experience?

 The proposed scope began very broad and quickly narrowed because of market and internal constraints.  But the project goals began as follows:



INITIAL POINT OF VIEW

Before diving deep into the research, the following four themes were developed as an initial hypothesis of what motivates consumers into trying and continuing to infuse their water with fruit and herbs.

convenience threshold

Consumers will continue to place a higher priority on convenience over any perceived infusion benefits because of hectic lifestyles. The amount of prep time, infusion time, and effort required to create infused beverages might drive their association as a special occasion or seasonal drink.

Health and Wellness

health and wellness

Depending on the recipe base, infusions can become a vitamin rich, low calorie, low sugar, alternative to plain water, juices, and sodas. Infused beverages act as a solid stepping stone for many health and wellness goals.

crafting the experience

Infusion provides the opportunity to play with pure flavor combinations and that experimentation appeals to both novice and expert palettes. Its a method that can cross multiple cultural and culinary categories (ex. drinking vinegars, agua fresca cocktails, punches, coolers).

signaling and presentation

The process of steeping has a strong initial visual appeal that fades as the organic matter begins to breakdown. The visibility of the product also acts a centerpiece of conversation and possibly social prestige.



Preliminary Research

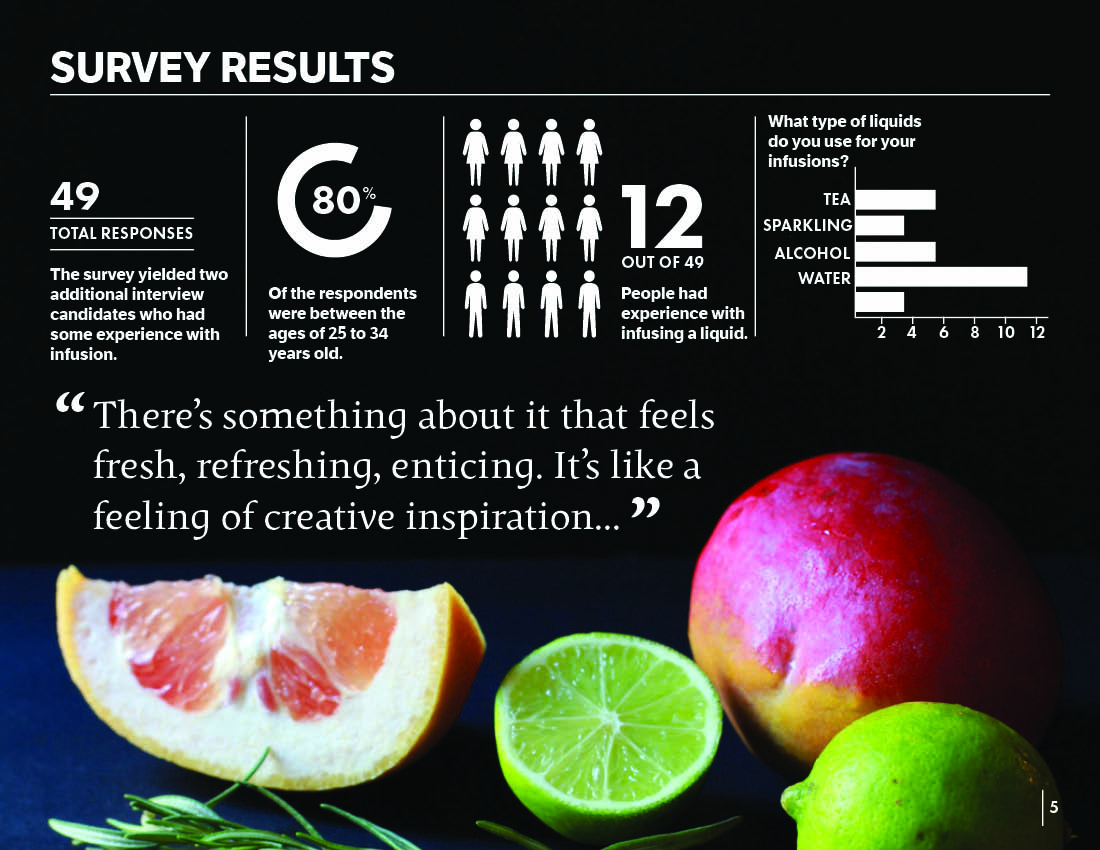

To begin identifying key experienced individuals and to get grounded in the topic, a quick online survey was conducted internally. The results are as follows:



COMMERCIAL INFUSION METHODS

To provide context and drive more innovative brainstorming sessions, I planned for the team to get a behind-the-scenes tour of the Aviary. This cocktail lounge is owned by the renowned molecular gastronomist Grant Achatz, who is famous for finding creative, experimental ways of infusing flavors into unexpected combinations.  We were given a tour of the back kitchens by the ice chef on staff, so presentation and attention to detail was the overriding theme.

The next day, the team debriefed and brainstormed on what insights we could use from the immersive experience at The Aviary. We came away with three key infusion methods that could be leveraged as design opportunity spaces.

Experiential Icons_PRESSURE.png

PRESSURE

The vacuum coffee maker method of infusion at the Aviary led to more secondary research and it turns out a whipping siphon can infuse instantly utilizing similiar physics principles and cavitation.

TOOLS

The Mixologists at the Aviary utilized tinctures to concentrate fruit flavors and liquid nitrogen to create powderized herbs. Smooth liquids were achieve by using tami sifters.

TEMPERATURE

Coffee brewing methods were used at the Aviary because heat infuses instantly whereas cold temperatures take longer to infuse. Visual presentation largely depends on different ice making methods.



AT-HOME INFUSION METHODS

After experiencing a professional kitchen, we discovered through secondary research what pro-sumers were doing at home to try and get similar bursts of flavor.  Then I tried out each method to better empathize with the average consumer's struggles with infusing water at home and to find out what method was the most effective at extracting flavor. This exercise also provided the opportunity to create a quick taste test around the office and get a read on how much flavor most people preferred in their infused water.


SLICED

The strawberries were sliced and left to sit in a pitcher overnight with ice. This method of infusing comes from YouTube star FullyRawKristina and appears to be the most method

CRUSHED

In a mortar and pestle, the strawberries were lightly crushed then tossed into a pitcher with ice. The pitcher was left in the refrigerator for five hours before serving.


PRESSED

Both Martha Stewart  Living and the brand Takeya recommended using hot water. The heat pulls out the flavor instantly and then ice is added to flash chill the mixture.


BLENDED

The fruit was blended with water and then strained twice to eliminate the pulp. The method is a variation on an agua fresca recipe and really tries to integrate the fruit juice.




Infusion Summary

The video below was created to help circulate internally, the different infusion methods that were studied during this project.

BEHIND THE SCENES



Primary Research

Nine participants were interviewed and asked to perform a “first-time use” study with competitive infuser products. The participants were asked to speak out their thoughts aloud as they used the products. Then tor two weeks, they were asked to take it home the and record their experience. The nine participants were then interviewed for a second time.




Insights

After reviewing the audio interviews, the following quotes were organized into insights and it became apparent that the infusion market had several competing needs. To better articulate the competing information, the insights were further developed into personas.



Persona Development

Personas concentrate on what motivates a user, what a user does, and what gives the user satisfaction. They are archetypal users of a product or system, whose goals and characteristics represent the needs of a larger group of users. They function as stand-ins for real users to guide decisions about design and functionality.


Synthesis

The primary research quickly made it clear that only a very small number of people would be willing to infuse their water on a regular basis because of the high level of inconvenience. However, this small group typically became passionate advocates and motivated consumers. Although their individual motives varied greatly, the simple Venn diagram below seems to capture the most high-level insights.

Design Opportunities

The slideshow below features the initial exploration around the potential design opportunities outlined by the research.  Although the research provided broad opportunity areas for product development, the internal marketing team decided that the consumer space was too small to invest efforts in developing a whole new product. Instead, we would leverage one of the existing products in the company's portfolio and create an infusion accessory.

Marketing Research

After presenting the design research and design opportunities, the legal team found a very, very broad patent that covers any active manipulation of fruit within a water bottle. It became apparent that a number of ideas would fall under this category, so a couple of passive fruit infusion concepts were selected and then tested against the biggest competitor in the market - Zing Anything.  Storyboards were created to help explain the work flow for the online consumer survey.

2D Form Development

While the marketing research was being conducted, the most promising concepts were further developed visually and finessed to work around the patent constraints.

3D Form Development

The market research came back in favor of leveraging existing lids and so appearance models were made of concept cone.  There were two concerns with utilizing existing lids; what form worked best with a straw and would the assembled model be too tall? Appearance models were made to better understand the answer to these two questions. The bottle size seemed appropriate but the straw trajectory, when assembling the lid, limited the size of the cone infuser. The team decided to move forward into production with concept minimal instead.

The appearance models also helped drive the decision about what visual form was most appropriate for the infuser cup. Although the large elliptical radius helped unify the infuser water bottle with the original bottle, it gave the impression of instability and limited fruit capacity. The production version featured a minimal radius and the walls were straightened to make the cup capacity look larger.  After a few production prototypes, engineering also recommended adding short inner wall segments to help keep the infuser from slipping from the blow-molded body.
